Elcom RS-3-X Switch


In stock


Additional Information

Additional information

Weight 20 g
operating characteristics

1) Operating Temprature With/Without Load:- -25°C to +85°C
2) Permissible Temprature For Soldering:- 270°C for 5 Sec Max.
3) Mounting:- Panel, Snap-in
4) Electrical Life:- 10,000 Cycles Min.


1) Body:- Nylon, GF
2) Knob:- Nylon, GF
3) Terminals :-Copper Alloy, Silver Plating.
4) Contacts:- Silver Alloy


Technical Specification

  • Type:- Rocker Switch
  •  V/A Rating:- 6A/16A, 250Vac

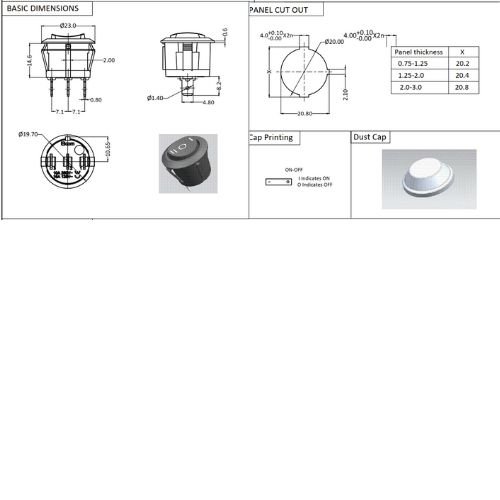

  •  Panel Thickness:- Refer Panel cut Out table
  •  Contact Resistance(Initial):- 10 m Ohms. Max.
  •  Insulation Resistance at 500 V DC:- 100 M Ohms Min
  • H.V.Break Down Test(For 1-Minute):- 1.5 KV AC
