Elcom RSF-11-5 Series Rocker Switch

30

In stock

  • Range Avilable in various electrical configuration Like SPST, DPST,DPDT,ETC.
  • Rockers avilable in various Colours including illuminations.
  • gold plated  element also available
  • available in fast on terminal compatibility

Additional information

Weight 30 g
operating characteristics

1)With/Without Load:- -25°C to +85°C
2)For Soldering:- 270°C for 5 Sec Max.

material

1)Body:- Nylon
2)Cap Nylon : Black/Red
3)Terminals:- Copper Alloy, Silver Plating.
4)Contacts:- Silver & Copper, Silver Plating

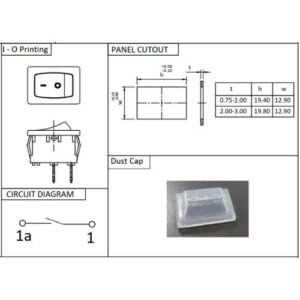

1)Type:- Rocker switch,SPST 2)Panel Thickness:- Refer Panel Cut out table 3)V/A Rating:- 4A/6A/16A,250Vac 4)Contact Resistance(Initial):- 10 m Ohms. Max. 5)Insulation Resistance at 500 V DC:- 100 M Ohms Min 6)H.V.Break Down Test(For 1-Minute):- 1.5 KV AC 7)Mounting:- Panel, Snap-in 8)Terminals:- Soldering-Fast on-4.80x0.80 9)Electrical Life:- 10,000 Cycles Min
